EnginePlumbing


XRP Hose
Stainless Steel CPE Hose	Power Steering Hose	Hose Insulation
XR-31 Hose	Stainless Steel Internal Support Coil	Hose Clamps
Push-On CPE Hose	Hose Cut-off Bracket and Blade	Silicone Hose
HS-79 Hose

Technical Information

Call for Price or go to LPIRacing.com

Stainless Steel CPE Hose Stainless steel outer braid provides durability and heat resistance. Scientific elastomer, chlorinated polyethylene (CPE) inner tube provides broad race fluid compatibility. This hose is known for its superior outer braid adhesion, making it easy to assemble. Beware of lesser quality hose with poor adhesion or weaker textile inner braid!

Technical Specifications - Temperature Range: -40° F to +300° F

Hose

Hose ID / in

Hose OD / in

Max Press*

Burst Press

Weight ft/lbs

Min. bend radius / in

P/N**

-4

7/32"

0.219

0.438

1000

6000

0.12

2.00

300004

-6

11/32"

0.344

0.547

1000

6000

0.15

2.50

300006

-8

7/16"

0.438

0.641

1000

5000

0.18

3.50

300008

-10

9/16"

0.562

0.797

1000

5000

0.23

4.00

300010

-12

11/16"

0.688

0.928

1000

4000

0.28

4.50

300012

-16

7/8"

0.875

1.156

750

3000

0.40

5.50

300016

-20

1-1/8"

1.125

1.437

500

2000

0.61

8.00

300020

-24

1-3/8"

1.375

1.703

250

1000

0.78

9.00

300024

-28

1-1/2"

1.500

1.704

250

1000

0.83

11.00

300028

-32

1-13/16"

1.750

2.094

250

800

1.02

12.50

300032

Note:
*) Maximum operating pressure when used with XRP Hose Ends or those conforming to MIL-F-83798A.
** Bulk hose lengths may be slightly over or under length specified.

Stainless steel braided CPE hose does not meet the SAE marine specifications for Coast Guard approval and should not be used for marine applications other than racing . This hose is not for power steering hydraulic impulse application or compatible with brake fluids.

Back

LPI Racing (406)420-2400

Top of Page

XR-31 LIGHTWEIGHT PERFORMANCE HOSE Tough, lightweight XR-31 hose is a sure bet for racers and street performance enthusiasts. It's versatile, flexible, easy to cut and assemble with a number of attractive characteristics including: excellent temperature resistance -40° to +300° F, high tube strength, tight bend radius capable for tight engine compartments. 3-ply construction consists of full coverage Nylon-bonded outer braid for abrasion-resistance, imbedded textile middle layer, and CPE synthetic rubber inner tube fro great flow and high-temperature resistance. XR-31 hose is made in U.S.A. XR-31 offers a significant weight-savings over stainless steel braided hose.

Size

Hose ID / in

Hose OD / in

Max Press

Min. bend radius / in

P/N (Call for Price)

-4

7/32"

0.22

0.44

350

2.00

3104-00

-6

11/32"

0.35

0.55

350

2.25

3106-00

-8

7/16"

0.44

0.65

350

3.50

3108-00

-10

9/16"

0.57

0.80

350

4.00

3110-00

-12

11/16"

0.69

0.94

350

4.50

3112-00

-16

7/8"

0.88

1.16

350

5.50

3116-00

Because today's fuels can contain a wide variety of unpublished additives, it is not possible for us to accurately predict compatibility of the inner liner of XR-31 hose with any specific fuel. We recommend the HS-79 Teflon-lined hose, if in doubt. XR-31 hose is not compatible with brake fluid.
Hose lengths may be slightly over or under length specified.

Back

LPI Racing (406)420-2400

Top of Page

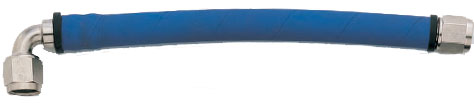

XRP Push-On CPE Tube - Blue or Black XRP Push-On Hose is constructed of CPE* elastomer tube, textile braid reinforced with CPE elastomer cover. Maximum operating pressure is 250 PSI. Applications for this hose are gasoline, fuel, lubricating oils, air and water. Sold in bulk in any length or in packaged precut lengths.

	Shown with Super Nickel Hose Ends.
		Shown with XRP Ensure Clamps for severe race use and high temp applications.
TECHNICAL SPECIFICATIONS - Temperature Range: -40° F to +300°F

Size

Hose ID / in

Hose OD / in

Max operating press

Burst press

Weight ft/lbs

Bend Radius / in

P/N Blue*

Price / Ft.

P/N Black*

-4

1/4"

0.250

0.500

250

1000

0.070

3.00

340004

$4.01

520004

-6

3/8"

0.375

0.620

250

1000

0.107

3.00

340006

$4.56

520006

-8

1/2"

0.500

0.750

250

1000

0.148

5.00

340008

$5.01

520008

-10

5/8"

0.625

0.900

250

1000

0.202

6.00

340010

$6.76

520010

-12

3/4"

0.750

1.030

250

1000

0.242

7.00

340012

$8.03

520012

*CPE=Chlorinated polyethylene - the same compound that is used in XRP stainless steel braided racing hose.
XRP Push-On Hose Clamps must be used for high temperature & oil line applications
Bulk hose lengths may be slightly over or under length specified.

Back

LPI Racing (406)420-2400

Top of Page

HS-79 Teflon Hose HS-79 THE MOST TECHNICALLY ADVANCED HOSE SYSTEM AVAILABLE...PERIOD! XRP brings true aerospace-quality fluid delivery to motorsports with HS-79 Ultra-Lite flexible smoothbore Teflon’s distinctive list of advantages. HS-79’s smooth-bore design offers extremely high flow rates, pressure and temperature ratings (-65° to +400° F) an d lower pressure drop than comparable systems. In addition, HS-79 provid es extreme flexibility and ease of installation and cleani ng. Tight bend radius and higher vacuum capacity are possible because HS-79 has a higher hoop strength...without using internal support coils that can restrict flow. It’s terrific for high vacuum applications, oil suction lines, etc. Moreover, XRP’s HS-79 assemblies feature a noticeably larger inner diameter. Look inside the fittings below and compare for yourself. It is this generous inner diameter that gives HS-7 9 greater flow capacity and better performance on race day. Bu t, greater flow is only part of the story optimizing fluid delivery! The characteristics of the flow are critically important to the racer as well. HS-79’s smooth-bore “non-convoluted” design eliminates boundary layer entrapment and flow disturbance for performance you can count on! HS-79 i s compatible with all racing engine fluids, including gas, alcohol, and nitromethane a nd can be assembled with either 37° JIC hose ends or aerospace-style aluminum quick disconnect clamshell couplings. Teflon®, Kevlar®, Hypalon® and Nomex® are DuPont trademarks.
		HS-79 Teflon Hose

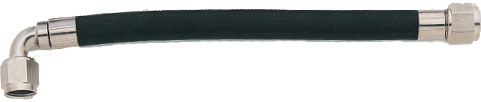

		HS-79 HP Teflon Hose W/ Hypalon
AEROSPACE QUALITY 4-PLY CONSTRUCTION! HS-79 ultra lightweight, flexible, smooth-bore Teflon® hose has a 4-ply composite construction: a Teflon® inner liner, Silicone outer liner, high tensile stainless reinforcing braid and outer braid of Nomex® with Kevlar® traces. HS-79 hose is available with a Hypalon® outer covering as a fifth layer for added resistance against abrasion and ease of cleaning. Features and benefits include: Radial Seal Allows Hose Ends to be Adjusted for Installation After Assembly Crimp Collars Can be Cut and Removed to Allow End Fittings to be Reused Superior Flexibility • Weight Savings • Ease of Cleaning • No Necked Down Restrictions Large Flow Capacity without the Disturbance or Boundary Layer Entrapment of Convoluted Hoses Great for Oil Suction Lines and High Vacuum Applications Inner Teflon® Tube Compatible with All Engine Fluids (Gasoline, Alcohol and Nitromethan)e TECHNICAL SPECIFICATIONS - TEMPERATURE RANGE: -64°F TO 400°F

Size

HS-79 Teflon Hose

HS-79 HP Teflon Hose W/ Hypalon

Max Op. Press.

Burst Press.

Bend Radius

I.D.

O.D.

Weight

P/N (Call for Price)

I.D.

O.D.

Weight

P/N (Call for Price)

-4

600 PSI

2400 PSI

.50"

.250"

.400"

.044 lb/ft

322004

.250"

.440"

.061 lb/ft

324004

-6

600 PSI

2400 PSI

.75"

.375"

.550"

.074 lb/ft

322006

.375"

.590"

.093 lb/ft

324006

-8

600 PSI

2400 PSI

1.00"

.500"

.680"

.092 lb/ft

322008

.500"

.720"

.123 lb/ft

324008

-10

400 PSI

1600 PSI

1.25"

.625"

.810"

.135 lb/ft

322010

.625"

.850"

.158 lb/ft

324010

-12

400 PSI

1600 PSI

1.50"

.750"

.950"

.161 lb/ft

322012

.750"

.990"

.198 lb/ft

324012

-16

200 PSI

800 PSI

2.00"

1.000"

1.200"

.221 lb/ft

322016

1.000"

1.240"

.264 lb/ft

324016

-20

100 PSI

400 PSI

5.00"

1.250"

1.450"

.325 lb/ft

322020

1.250"

1.490"

.370 lb/ft

324020

NOTE: HS-79 AND HS-79 WITH HYPALON ARE NOT INTENDED FOR HYDRAULIC IMPULSE OR SUBMERSION APPLICATIONS.

Back

LPI Racing (406)420-2400

Top of Page

POWER STEERING HOSE
	This premium quality power steering hose is made of elastomer tube, polyester inner braid with single wire braid reinforcement and polyester braid cover. Operating temperature is between -55°F and +300°F (except air +250°F). Suitable for many applications: air, gasoline, fuel and lubricants, over-the-wall air tools, etc.

Hose

Hose I.D.

Hose O.D.

Max Operating Prssure

Burst Pressure

Weight Per/Ft.

Minimum Bend Radius

P/N* (Specify Length)

-6

.31"

.67"

2,250 PSI

9,000 PSI

.23 lbs.

4.00"

510006

-8

.41"

.77"

2,000 PSI

8,000 PSI

.26 lbs.

4.62"

510008

-10

.50"

.92"

1,750 PSI

7,000 PSI

.37 lbs.

5.50"

510010

* Bulk hose lengths may be slightly over or under length specified.

Back

LPI Racing (406)420-2400

Top of Page

Stainless Steel Internal Support Coil
	Flat wound internal support coil is available in several popular sizes, it can be used with Stainless Steel CPE Hose or Push-On Hose. It provides extra support for the most demanding high vacuum applications. Excellent for modern dry sump systems. Support Coil is sold by the foot. Please specify length when ordering.

Hose

Coil OD

P/N (Call for Price)

-8 CPE

.44"

310008

-10 CPE

.60"

310010

-12 CPE

.73"

310012

-12 HS-79

.875"

310014

-16 CPE

.94"

310016

-16 HS-79 or -20 CPE

1.190"

310020

Back

LPI Racing (406)420-2400

Top of Page

HOSE CUT-OFF BRACKET AND BLADE
	The secret to easy hose assembly! No tape! No fraying! This innovative bracket adapts a customer supplied circular handsaw to make the perfect hose cut off machine. Using the special 7” toothless cut off blade, the hose can be cut fast, square and clean. No excess dirty rubber, as with abrasive wheel cutting. No fraying, as with a hacksaw or shear. The bracket’s steel pins arc the hose to allow the blade to cut cleanly through, without pinching the blade. Great for all hose types, including Stainless Steel Braided, Teflon, Push-On, and HS-79.

Description

P/N (Call for Price)

Hose Cut-Off Saw Bracket (circular saw not included)

329002

Hose Cut-Off Saw Blade

329003

Back

LPI Racing (406)420-2400

Top of Page

HOSE INSULATION XRP offers several products to protect engine hoses and wires in high temperature applications. The descriptions below will help you choose the best product for your needs. All products are sold by the foot. Be sure to specify length when ordering.
	FYRE JACKET FYRE JACKET is a smooth silver silicone-coated glass sleeving, engineered to withstand continuous temperatures to 500°F. Fyre Jacket can provide short term direct flame protection and is expandable for easy installation over completed hose assemblies. XRP has sized this product to provide a tight fit on our braided stainless steel CPE hose.

Silver Silicone Fyre Jacket

Size

I.D.*

P/N (Call for Price)

-4

7/16"

320204

-6

1/2"

320206

-8

5/8"

320208

-10

3/4"

320210

-12

7/8"

320212

-16

320216

-20

1-1/4"

320220

Note:
*) Sized for stainless steel braided hose - use I.D. dimensions for other hoses or cables

	FYRE FOIL II FYRE FOIL II is a very lightweight fiberglass sleeving laminated with a mylarized aluminum surface that provides radiant heat protection to 800°F. The mylar surface resists abrasion and brake fluid. Fyre Foil II is NOT expandable and should be slipped over the hose BEFORE assembly.

	FYRE FOIL LITE SLEEVING An ultra-lightweight fiberglass laminated sleeve with a mylarized aluminum surface for radiant heat protection to 800°F, Fyre Foil Lite has an internal seam for a smooth exterior with no visible stitching. Abrasion resistant. Repels brake fluid. Fyre Foil Lite is NOT expandable and should be slipped over the hose BEFORE assembly.

Fyre Foil II

Fyre Foil Lite

Size

I.D.*

P/N (Call for Price)

-3 / -4 Teflon Hose

3/8"

320503

320703

-4 SS Hose

1/2"

320504

320704

-6 SS Hose

5/8"

320506

320706

-8 SS Hose

3/4"

320508

320708

-10 SS Hose

7/8"

320510

320710

-12 SS Hose

320512

320712

-16 SS Hose

1-1/4"

320516

320716

-20 SS Hose

1-1/2"

320520

320720

-48

3-1/4"

320548

Note:
*) Sized for stainless steel braided hose - use I.D. dimensions for other hoses or cables

Back

LPI Racing (406)420-2400

Top of Page

HOSE CLAMPS

FULL MARINE GRADE STAINLESS STEEL WORM CLAMPS

Size

I.D. Range

Qty

P/N (Call for Price)

-4 to -8

1/4" to 5/8"

(4 Pcs.)

810108

-10

7/16" to 3/4"

(4 Pcs.)

810110

-12

1/2" to 7/8"

(4 Pcs.)

810112

-14

9/16" to 1-1/16"

(4 Pcs.)

810114

-16

15/16" to 1-1/2"

(4 Pcs.)

810116

-20

1-3/16" to 1-3/4"

(4 Pcs.)

810120

-28

1-7/16" to 2"

(2 Pcs.)

810128

-32

1-15/16" to 2-1/2"

(2 Pcs.)

810132

For silicone hose, use liner clamps ONLY.
NOTE: These clamps use full marine grade stainless steel in the band and screw.

Liner Hose Clamps

I.D.

Qty.

P/N (Call for Price)

9/16" to 13/16"

(4 Pcs.)

819406

11/16" to 15/16"

(4 Pcs.)

819408

13/16" to 1-1/16"

(4 Pcs.)

819410

15/16" to 1-1/4"

(4 Pcs.)

819412

1" to 1-3/4"

(4 Pcs.)

819420

1-3/16" to 2"

(2 Pcs.)

819424

1-5/16" to 2-1/4"

(2 Pcs.)

819428

1-13/16" to 2-3/4"

(2 Pcs.)

819436

2-1/16" to 3"

(2 Pcs.)

819440

2-5/16" to 3-1/4"

(2 Pcs.)

819444

2-9/16" to 3-1/2"

(2 Pcs.)

819448

3-5/16" to 4-1/4"

(2 Pcs.)

819460

Fully lined to prevent extrusion of hose through band.

CUSHION CLAMPS

Aluminum

Teflon

Size*

I.D.

Qty

P/N (Call for Price)

-3

3/16" Hard-line

(10 Pcs.)

810203

-3

1/4"

(10 Pcs.)

810233

-4

5/16"

(10 Pcs.)

810244

-4

7/16"

(10 Pcs.)

810204

-6

9/16"

(10 Pcs.)

810206

-8

11/16"

(5 Pcs.)

810208

-10

13/16"

(5 Pcs.)

810210

-12

15/16"

(5 Pcs.)

810212

-16

1-3/16"

(5 Pcs.)

810216

-20

1-1/2"

(5 Pcs.)

810220

*Sized for stainless steel braided hoses. Use clamp I.D. to determine size required for other hoses or tubing.

Back

LPI Racing (406)420-2400

Top of Page

SILICONE HOSE Silicone hose operating pressure varies from 50 PSI to 110 PSI depending on size. Fluid and vacuum hoses have a maximum operating temperature of 350° F. Turbo hoses have a maximum operating temperature of 500° F. DO NOT USE WITH GASOLINE.

Coolant Hose

High Temp Wire Reinforced Flex Hose

I.D.

Length

P/N (Call for Price)

3/4"

3 ft.

370075

3 ft.

370100

1-1/4"

3 ft.

370125

372125

1-1/2"

3 ft.

370150

372150

1-3/4"

3 ft.

370175

3 ft.

370200

2-1/4"

3 ft.

370225

2-1/2"

3 ft.

370250

2-3/4"

3 ft.

370275

3 ft.

370300

3-1/2"

3 ft.

370350

3 ft.

370400

3 ft.

370500

All sizes available in 3' lengths ONLY. Custom lengths to 12'.

VACUUM HOSE

HEATER HOSE

I.D.

P/N (Call for Price)

1/8"

350012

3/16"

350018

1/4"

350025

380025

5/16"

350031

380031

3/8"

350038

380038

1/2"

380050

5/8"

380062

3/4"

380075

380100

All sizes available in 25' or 50' lengths ONLY.

Preformed Hose 45°

Preformed Hose 90°

I.D.

Radius

P/N (Call for Price)

390100

1-1/4"

390125

1-1/2"

390150

1-3/4"

345175

390175

390200

2-1/4"

390225

2-1/2"

390250

2-3/4"

390275

Other sizes available on request.

TURBO HOSE 3-ply

TURBO HOSE 4-ply

I.D.

Length

P/N (Call for Price)

1-1/4"

3 ft.

362125

364125

1-1/2"

3 ft.

362150

364150

1-3/4"

3 ft.

362175

364175

3 ft.

362200

364200

2-1/2"

3 ft.

362250

364250

2-3/4"

3 ft.

362275

364275

3 ft.

362300

364300

3-1/8"

3 ft.

362312

364312

3-1/2"

3 ft.

362350

364350

All sizes available in 3' lengths ONLY.
62 Series is 3-ply glass fiber reinforced.
64 Series is 4-ply glass fiber reinforced.

Back		Top of Page
	LPI Racing Phone: (406)420-2400 E-mail: Sales@LPIRacing.com See our new site at LPIRacing.com
