 Chevrolet Corvette > Brakes > Brake Kits

AP Racing

 Brembo
AP Racing Brembo
C5 Corvette C5 Corvette
C6 Corvette



AP Racing

AP Racing Big Brake Systems
AP Racing Big Brake upgrades have been developed to be the ultimate performance brake upgrade. All kits are designed to perform with the factory OE master cylinder and are ABS compatible. Each kit includes world famous AP Racing 2, 4 or 6-Piston Aluminum Alloy Calipers with AP Racing performance Cross-Drilled and/or Slotted Rotors. The rotors are one or two piece curved vane for maximum cooling. Also included is 6061 T6 Aluminum mounting brackets with steel inserts for added strength, DOT Tested Stainless Steel Brake Lines, and all the necessary Aerospace Grade hardware to install the kit. Many kits require 18" or larger wheels so please call for a brake profile to check wheel clearance. You too can now posses the same advance brake technology found in the Indy Racing League (IRL), Formula 1, World Rally Car (WRC), and NASCAR at an affordable price.

Please call for a brake profile template to check for wheel clearance before ordering. Wheel spoke design and backspacing can vary among different wheel designs and the installer must verify fitment.

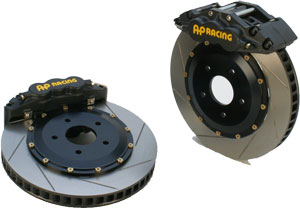

AP1600 Front Big Brake System for C5
AP Racing Black 6 piston caliper, two piece rotor (14" slotted rotors). A massive slotted rotor is gripped by a huge 6 piston caliper featuring sequentially sized pistons. This maximizes pad sweep and evens out pad pressure. The result is consistent braking force and longer pad life. Many 17" and larger wheels will accommodate this kit.		 AP1650 Rear Big Brake System for C5

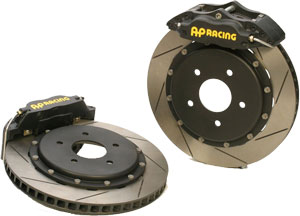

AP Racing 4-Piston Two-Piece 13" Slotted or Drilled Rotors.
AP6000R Front Big Brake System for C6
 Lightweight, pressure cast aluminum alloy 2-piece bods
Fixed radial mount for minimal caliper flex
Hard anodized then finished with a tough 2-part paint system

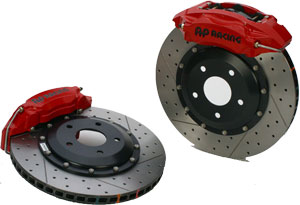

Differential piston bores minimize pad taper and maximize braking efficiency		 AP6050 Rear Big Brake System for C6
 14" (356 x 26mm) 2-piece XD/S rotor assembly with integral lightweight aluminum parking brake drum (slotted available)
High-performance Mintex Xtreme Motorsport pads (AP00FD55MXM)
Stainless steel brake lines, brackets and all hardware are included
AP Racing - Corvette Year F / R Color Caliper Disc P/N (Call for Pricing)
C5 CORVETTE / Z06 97-04 FRONT BLK 6-PISTON 2PC 14" Cross-Drilled / Slotted AP1600
C5 CORVETTE / Z06 97-04 FRONT RED 6-PISTON 2PC 14" Cross-Drilled / Slotted AP1600R
C5 CORVETTE / Z06 97-04 FRONT BLK 6-PISTON 2PC 14" Slotted AP1600S
C5 CORVETTE / Z06 97-04 FRONT RED 6-PISTON 2PC 14" Slotted AP1600SR
C5 CORVETTE / Z06 97-04 FRONT BLK 6-PISTON 2PC 14" FLOATING, Slotted AP1600T
C5 CORVETTE / Z06 97-04 FRONT RED 6-PISTON 2PC 14" FLOATING, Slotted AP1600TR
C5 CORVETTE / Z06 97-04 REAR BLK 4-PISTON 2PC 13" Cross-Drilled / Slotted AP1650
C5 CORVETTE / Z06 97-04 REAR RED 4-PISTON 2PC 13" Cross-Drilled / Slotted AP1650R
C5 CORVETTE / Z06 97-04 REAR BLK 4-PISTON 2PC 13" Slotted AP1650S
C5 CORVETTE / Z06 97-04 REAR RED 4-PISTON 2PC 13" Slotted AP1650SR
C6 CORVETTE / Z06 05-07 FRONT BLK 6-PISTON 2PC 14.25" Cross-Drilled / Slotted AP6000
C6 CORVETTE / Z06 05-07 FRONT RED 6-PISTON 2PC 14.25" Cross-Drilled / Slotted AP6000R
C6 CORVETTE / Z06 05-07 FRONT BLK 6-PISTON 2PC 14.25" Slotted AP6000S
C6 CORVETTE / Z06 05-07 FRONT RED 6-PISTON 2PC 14.25" Slotted AP6000SR
C6 CORVETTE / Z06 05-07 REAR BLK 4-PISTON 2PC 14" Cross-Drilled / Slotted AP6050
C6 CORVETTE / Z06 05-07 REAR RED 4-PISTON 2PC 14" Cross-Drilled / Slotted AP6050R
C6 CORVETTE / Z06 05-07 REAR BLK 4-PISTON 2PC 14" Slotted AP6050S
C6 CORVETTE / Z06 05-07 REAR RED 4-PISTON 2PC 14" Slotted AP6050SR

Back LPI Racing (406)420-2400 Top of Page


Brembo

Brembo - The Gran Turismo Brake Systems are comprised of both 1 or 2-piece vented rotors that are 12 to 15 inches cross-drilled or slotted. In the 2-piece system, billet aluminum hats are application specific and have been individually machined to engineering specifications. The marriage of these pieces create a "floating disc" which reduces heat related stress and improves brake performance and pedal feel.

Many of the Gran Turismo systems require modification to, or removal of the OEM dust shield or backing plate.
Unless otherwise specified, all systems available either drilled or slotted. the third digit in the P/N denotes disc type. 1 = drilled, 2 = slotted.

If you plan to use your C5 or Z06 Corvette for the track we strongly suggest going with the slotted rotors. For the street, the drilled rotors look and work great.
Livermore Performance C5 Corvette
Brembo 1B2
Brembo 2C2
1B2 GT1 (F50 - Type) 4 Piston Red Calipers w/2-Piece Slotted Disks 2C2 Rear GT3 4 Piston Red Calipers w/2-Piece Slotted Disks Livermore Performance '99 C5 Coupe equipped with Brembo 1B2 GT1 (F50 - Type) 4 Piston Black Calipers w/2-Piece Slotted Disks. Photo courtesy of Doug and Lisa Photography
P/N Description
Caliper Clearance Guide
Brembo - Corvette Year Wheel F/R Piston Color Disk Size Disk Note P/N Drilled P/N Slotted A B C
Corvette C5 97-04 18" Front 4 B, R, S 14" 355x32 mm 1-Piece 1 1H4.8001A N/A 52 122 200
Corvette C5 97-04 18" Front 4 B, R, S 14" 355x32 mm 2 Piece 1 1B1.8006A 1B2.8006A 46 122 200
Corvette C5 97-04 Front 6 B,R,S,Y 14" 355x32 mm 2-Piece 1M1.8013A 1M2.8013A 46 122 210
Corvette C5 97-04 Front 6 B,R,S,Y 380x32 mm 2-Piece 1M1.9002A 1M2.9002A 46 134 221
Corvette C5 Rear 97-04 Rear 4 B, R, S 340x26 mm 1-Piece 2C4.7001A N/A 35 117 198
Corvette C5 (Incl. Z06) Rear 97-04 18" Rear 4 B, R, S 13.6" 345x28 mm 2 Piece 2C1.8003A 2C2.8003A 35 119 200
Corvette C5 (Incl. Z06) Rear 97-04 18" Rear 4 B,R,S,Y 13.6" 345x28 mm 2 Piece 2P1.8012A 2P2.8012A 40 114 203
Corvette C6 (Excluding Z06) 05+ 18" Front 4 B, R, S 14" 355x32 mm 1-Piece 1 1H4.8002A N/A 52 122 200
Corvette C6 (Excluding Z06) 05+ 18" Front 4 B, R, S 14" 355x32 mm 2 Piece 1 1B1.8047A 1B2.8047A 51 122 200
Corvette C6 (Excluding Z06) 05+ Front 6 B,R,S,Y 14" 355x32 mm 2-Piece 1M1.8014A 1M2.8014A 51 119 213
Corvette C6 (Excluding Z06) 05+ Front 6 B,R,S,Y 380x32 mm 2-Piece 1M1.9003A 1M2.9003A 51 134 221
Corvette C6 Rear 05+ Rear 4 B, R, S 340x26 mm 1-Piece 2C4.7002A N/A 35 117 198
Corvette C6 Rear 05+ 18" Rear 4 B, R, S 13.6" 345x28 mm 2 Piece 2C1.8020A 2C2.8020A 35 119 200
Corvette C6 Rear 05+ 18" Rear 4 B,R,S,Y 13.6" 345x28 mm 2-Piece 2P1.8013A 2P2.8013A 40 114 203
Corvette C6 Z51 05+ Front 4 B, R, S 14" 355x32 mm 1-Piece 1 1H4.8002A N/A 52 122 200
Corvette C6 Z51 05+ Front 4 B, R, S 14" 355x32 mm 2-Piece 1 1B1.8047A 1B2.8047A 51 122 200
Corvette C6 Z51 05+ Front 6 B,R,S,Y 14" 355x32 mm 2-Piece 1M1.8014A 1M2.8014A 51 122 210
Corvette C6 Z51 05+ Front 6 B,R,S,Y 380x32 mm 2-Piece 1M1.9003A 1M2.9003A 51 134 221
Corvette C6 Z51 (Rear) 05+ 18" Rear 4 B,R,S,Y 13.6" 345x28 mm 2-Piece 2P1.8013A 2P2.8013A 40 114 203
Corvette C6 Z06 06+ Front 6 B,R,S,Y 14" 355x32 mm 2-Piece 1M1.8029A 1M2.8029A 51 122 210
Corvette C6 Z06 06+ Front 6 B,R,S,Y 380x32 mm 2-Piece 1M1.9015A 1M2.9015A 51 134 221
Corvette C6 Z06 (Rear) 06+ 18" Rear 4 B,R,S,Y 13.6" 345x28 mm 2-Piece 2P1.8013A 2P2.8013A 40 114 203

Notes:
1) Requires minor modification to the OEM steering knuckle.
