Porsche > Suspension > Chassis Braces


Brey-Krause

Brey-Krause
Strut Braces
B-Pillar Brace
Control Arm Cross Brace (Aluminum)

Brey-Krause Strut Tower Braces - During hard cornering and braking, forces are fed from the wheels to the strut tower. Adding stiffer springs and performance shocks only increases the load. Long-term effects are shock tower fatigue, cracking and poor tire wear. A Strut Tower Brace provides extra support to the strut towers by securing both towers together and limiting relative motion. A quality Strut Tower Brace also sharpens the feel and response of the front suspension, thereby enhancing the driver's experience and lowering lap times.

Brey-Krause strut tower braces incorporate high strength precision rod ends for adjustability and perfect fit. Their design uses factory mounting points and transfers the load to the strut bearing mount. Like our Harness Guides , the Strut Tower Brace's design matches the beauty of your Porsche. If you don't want to make any compromises on performance, we have developed a series of carbon fiber strut braces and upgrade kits that deliver the promise of incredible strength to weight properties.




Brey-Krause

Brey-Krause Strut Brace - Adjustable rod ends allow precise preloading.
Brey-Krause Strut Tower Brace - Stainless Steel R1510 for 911, All (69 - 89) Close up Brey-Krause Strut Tower Brace - Stainless Steel R1510 for 911, All (69 - 89)
R-1510 Stainless Steel Strut Tower Brace (911 '69 -'89)
R-1530 Stainless Steel Strut Tower Brace (C2, C4, 993)
Brey-Krause Strut Tower Brace - Carbon Fiber R1531 Light Weight Carbon Fiber Strut Tower Brace End Brey-Krause Strut Tower Brace - Carbon Fiber R1531 Light Weight Carbon Fiber Strut Tower Brace
R-1511 Carbon Fiber Strut Tower Brace (911 '69 -'89)
R-1512 Carbon Fiber Upgrade for R-1510 (911 '69 -'89)
R-1531 Carbon Fiber Strut Tower Brace (C2, C4, 993)
R-1532 Carbon Fiber Upgrade for R-1530 (C2, C4, 993)
Brey-Krause Strut Tower Brace - Stainless Steel Brey-Krause Strut Tower Brace - Stainless Steel
R-1520 Stainless Steel Strut Tower Brace (944 & 924)
R-1521 Stainless Steel Strut Tower Brace (944S)
R-1522 Stainless Steel Strut Tower Brace (944-Turbo & 944-Turbo-S)
R-1535 Competition Carbon Fiber Strut Tower Brace (C2, C4, 993)
Brey-Krause - Porsche Strut Tower Brace P/N (Call for Price)
All 911 Coups '69 - '89 LT. WT. STAINLESS STEEL R-1510
All 911 Coups '69 - '89 COMPETITION CARBON FIBER R-1511
All 911 '69 -'89 CARBON FIBER - (CF UPGRADE FOR R-1510) R-1512
944 & 924 LT. WT. STAINLESS STEEL R-1520
944S LT. WT. STAINLESS STEEL R-1521
944-Turbo & 944-Turbo-S LT. WT. STAINLESS STEEL R-1522
All C2,C4,993 LT. WT. STAINLESS STEEL R-1530
C2, C4, 993 COMPETITION CARBON FIBER R-1531
C2, C4, 993 CARBON FIBER - (CF UPGRADE FOR R-1530) R-1532
C2, C4, 993 Competition Carbon Fiber Designed w/ aftermarket spherical strut bearings. Will clear most fuel cells R-1535

Back LPI Racing (406)420-2400 Top of Page


Brey-Krause

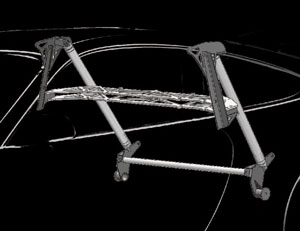

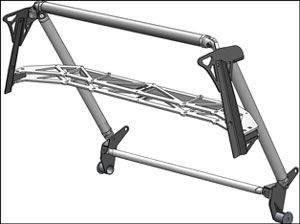

Brey-Krause B-Pillar Brace System
Brey-Krause’s B-Pillar Brace System adds support to the structural integrity of ’74-’98 Porsche 911 Coupes. Through innovative engineering, this unit adds structural support and body rigidity to counteract stresses incurred on the track. The discreet design allows drivers to leave the unit in the car when driving on the street.
The product was designed to work in conjunction with another piece of track-ready equipment offered by Brey-Krause, the Harness Mount Truss. This item allows drivers to mount their harnesses directly to the bar. The B-Pillar Brace must be installed with the Harness Mount Truss in order to maximize its strengthening capabilities. The B-Pillar Brace will work with Harness Mount Trusses already installed in the field.
R-1960
B-Pillar Bracket Kit - Reinforces B-pillar column
R-1950/R-1955
Rear Body Brace Kit - Reduces rear body flex
R-1025
Harness Mount Truss - Provides harness mounting points
R-1990
Vertical Support Kit - Combines upper and lower assemblies
Material: 6061 aluminum vertical supports - Stainless steel brackets and cross support
Finish: Clear anodized aluminum, black powder-coated mounting brackets
Installation: Attaches to b-pillar and outboard rear seat belt factory mounting points
Miscellaneous: Must first install R-1025 Harness Mount Truss
Brey-Krause - Porsche Year Description P/N (Call for Price)
911 coupes 74-98 B-Pillar Bracket Kit - Reinforces B-pillar column R-1960
911 coupes 89-97 Rear Body Brace Kit - Reduces rear body flex R-1950
911 coupes 74-88 Rear Body Brace Kit - Reduces rear body flex R-1955
911 coupes 74-98 Vertical B-Pillar Supports - Combines upper and lower assemblies R-1990
911 coupes 74-98 Harness Mount Truss - Provides harness mounting points R-1025
911 coupes 74-98 Upper Cross Brace for B-Pillar Brace R-1940

Back LPI Racing (406)420-2400 Top of Page


Brey-Krause

Brey-Krause Control Arm Brace
R1524 Lower Front Cross Brace was designed with obsessive attention to minimizing weight. Precision waterjet machining allows for an intricate structure, providing superior stiffness at an exceptionally light weight. This cross brace bolts between the rear most mounting points of the front control arms. It resists deflection of the chassis at those points, which can occur under heavy braking and cornering.

For best results, use hardened control arm bushings 924 and early 944 models can be adapted by using late 944 alloy control arms and bushing mounts
Brey-Krause Control Arm Brace
Brey-Krause - Porsche Description P/N (Call for Price)
944 (85½ - 92), 968 FRONT CONTROL ARM CROSS BRACE - (aluminum) R-1524

Back Top of Page
